16mm Triplewall Polycarbonate Roofing Sheet Clear

16mm Triplewall Polycarbonate Roofing Sheet Clear
Zoom  Zoom
 16mm Triplewall Polycarbonate Roofing Sheet Clear16mm Triplewall Polycarbonate Roofing Sheet Clear
Our Price  £24.85
List Price  £32.36
Saving Of  23%
(Inc. 20% VAT)(£20.71 Exc. VAT)
+



Brand:  Palram

Palram

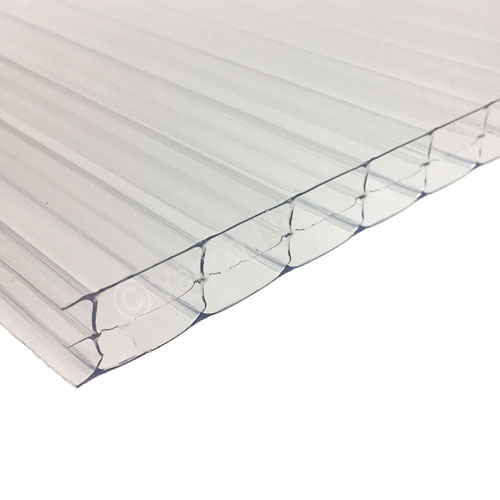

16mm Clear Triplewall Polycarbonate Sheet

16mm Clear Triplewall Polycarbonate Sheet is a versatile lightweight polycarbonate sheet ideal for use in lean to roofs, carports, canopies, pergolas and display applications.



Our 16mm sheet is a triplewall construction giving it a greater strength when compared to our 10mm twinwall polycarbonate sheet.  It is therefore ideal for the larger projects such as car ports, canopies and lean to conservatory roofs.

16mm Clear Polycarbonate sheet offers a great light transmission and is great for carports or lean to's on a north facing aspect.  It is extremely easy to work with and is suitable for use with our range of rafter supported glazing bars or self support range of glazing bars.

16mm is available in a variety of sizes (please select from the drop down boxes above) but we are also able to cut panels to size upon request - please contact us for details and pricing.

Free of charge samples are available upon request - please get in touch to order your samples.

16mm Triplewall Polycarbonate sheets are available for delivery nationwide within a few working days -  delivery costs £20 per order irrelavent how many sheets are ordered.

Other applications  for 16mm polycarbonate roofing sheets include trolley bays, smoking shelters, walkway canopies and koi pond covers.

Technical Data:

Technical Data:



Flute Structure:  Triplewall Box Section



U-Value: 2.3W/m² °K



Weight: 2.7kg/m²



Light Transmission:



Clear:  76%



Bronze:  35%



Opal:  48%



Flammability:  BS476/7:  Class 1



UV Protected:  Yes on one side (marked on protective film)



Service Temperature (long term):  -50°C to +100°C



Warranty: 10 years manufacturers limited warranty (see technical downloads for further information)



Tolerances On Length & Width: +/-5mm







Installation Instructions:



/downloads/SUNLITE_Installation(1).pdf



Polycarbonate Data Sheet:



/downloads/Multiwall_Poly_Data_Sheet.pdf





Technical Data:

U-Value: 2.3

Weight: 2.7kg/sqmt

Light Transmission:

Clear 76%

Bronze 35%

Opal 48%

Warranty: 10 years manufacturers limited warranty (see technical downloads for further information)

Cutting Tolerances: +/-5mm

Installation Instructions:



Polycarbonate Data Sheet:
