Self Support Glazing Bars Suitable For Polycarbonate & Glass
Used for glazing canopies / carports / lean to roofs. Self Supported Glazing Bars do not need to have rafter beneath them**.

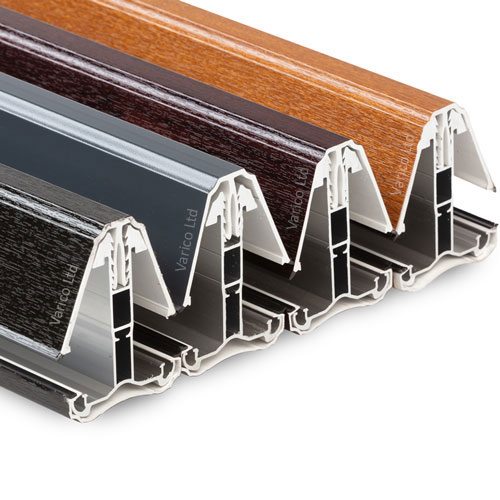

Choose Your Colour - Anthracite Grey, Black, Rosewood and Light Oak / Golden Oak.

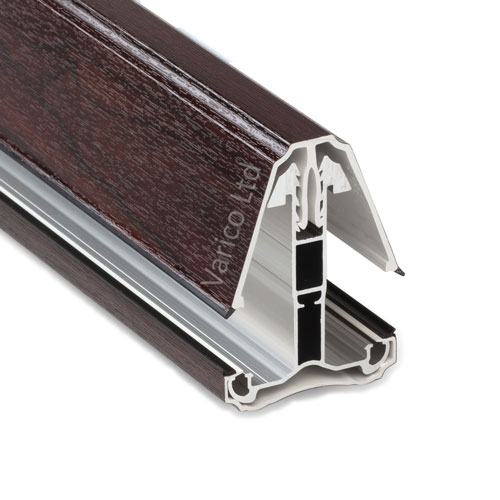

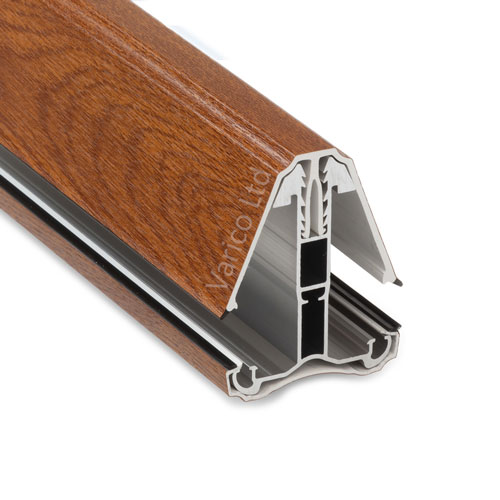

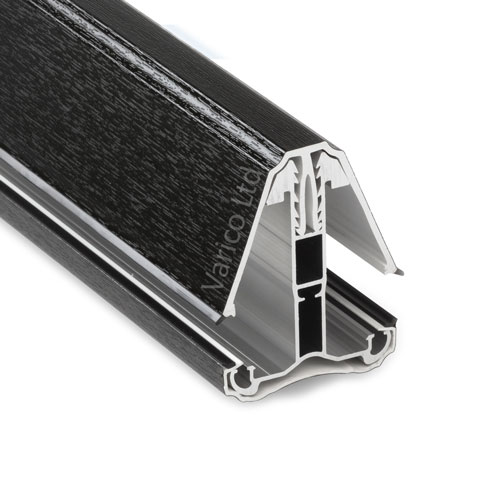

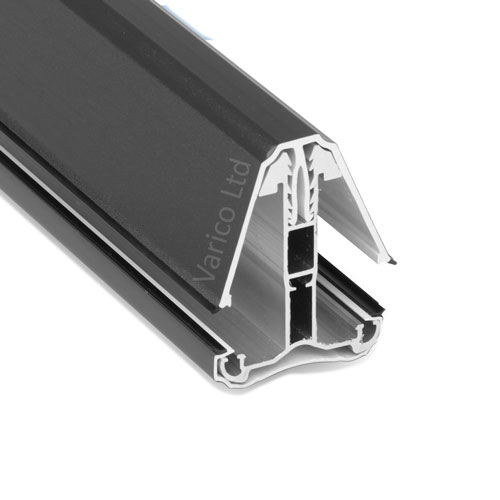

Anthracite grey is a smooth colour. Black, rosewood and light oak are woodgrain effect finish - see pictures.
Use with the dedicated eaves beam and wallplate to make the perfect conservatory, lean to roof or canopy. Our Self Support Glazing Bars are compatible with 16mm, 25mm or 35mm polycarbonate sheet and 24mm sealed units**.
Each glazing bar is supplied with one end cap.
** Loading specifications apply. Bars have limitations, please understand the maximum glazing bar projections and sheet widths before ordering product. Please contact us for details concerning the safe installation of a self supported roof. This product is only really suited to an experienced DIY'er or tradesman **
MAXIMUM PROJECTION OF SELF SUPPORT GLAZING BAR UNSUPPORTED IS 4M.
MAXIMUM POLYCARBONATE WIDTH IS 1000MM. MAXIMUM SEALED UNIT WIDTH IS 800MM. PLEASE NOTE THE SPANS AND MAXIMUM PERMITTED SHEET WIDTHS CHANGE DEPENDANT UPON PITCH AND PROJECTION. PLEASE CONTACT US FOR MORE INFORMATION.
MINIMUM PITCH IS 5 DEGREES - 10 DEGREES AND ABOVE IS RECOMMENDED BY THE MANUFACTURER.
- Car Ports
- Lean To Roofs
- Smoking Shelters
