Suntuf® EZ GLAZE™ Polycarbonate Roofing System
New from Palram - Suntuf® EZ GLAZE™ is a 'glass like' profiled polycarbonate roofing system. EZ GLAZE™ is a versatile, lightweight and low maintenance product that is easy to fit. The elegant design offers a 'glass like' appearance with a modern clean look. EZ GLAZE™ features a genius profiled design that enables it to be installed over rafters giving a high loading capacity.

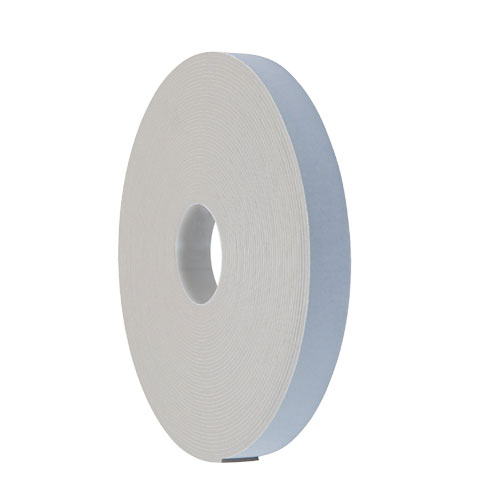

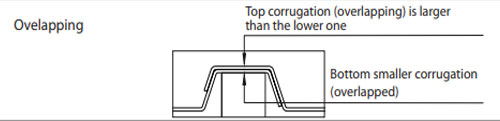

Easy-to-fit, the panels simply overlap and are fastened on to the supportive rafters using EZ GLAZE™ timber fixing screws. A foam tape is placed beneath the joint to prevent noise during inclement weather.

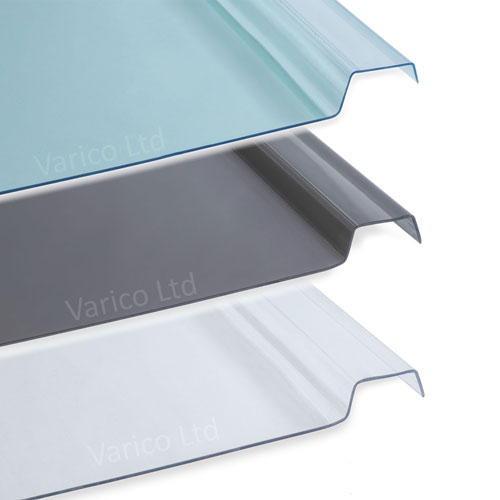

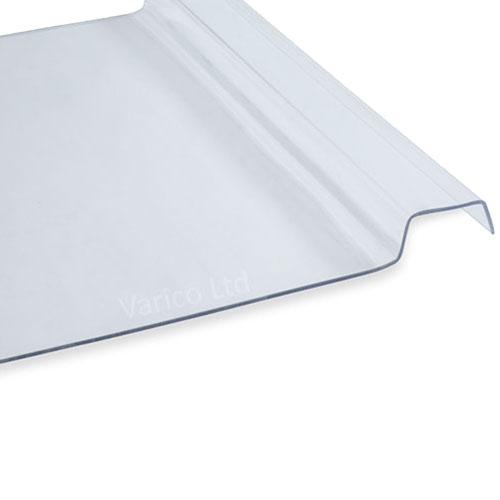

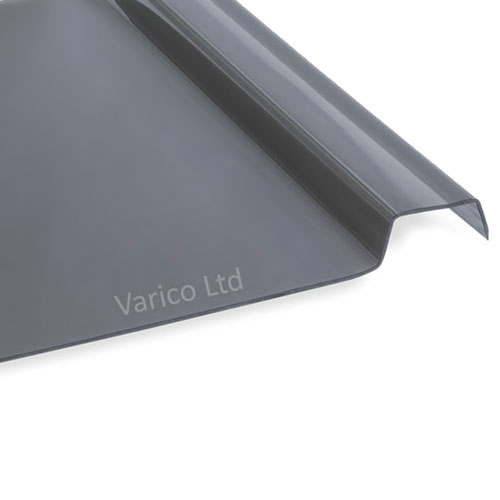

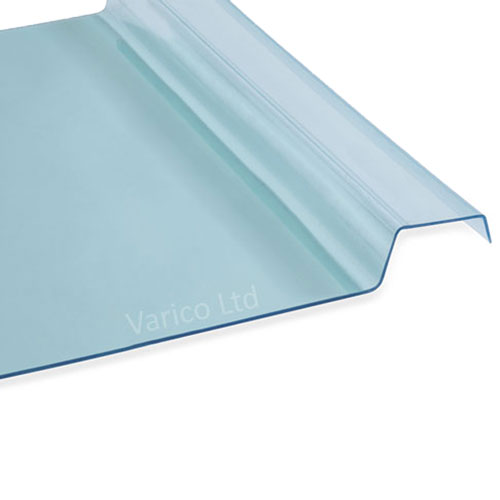

Available in three colours: Clear / Blueish Breeze / Grey
Suitable for a wide range of uses; applications include:
- Patio Enclosures
Features and benefits include:
- Available in three colours: Clear, Blueish Breeze and Grey
- Modern clean design
- High wind and snow load resistance
- No need to climb on the roof to install
- Good hail resistance
- UV protection - blocks 99.9% of UV
IMPORTANT! Your roof must have a minimum pitch of 5° (5%). This equates to an approximate fall of around 100mm per metre of projection.

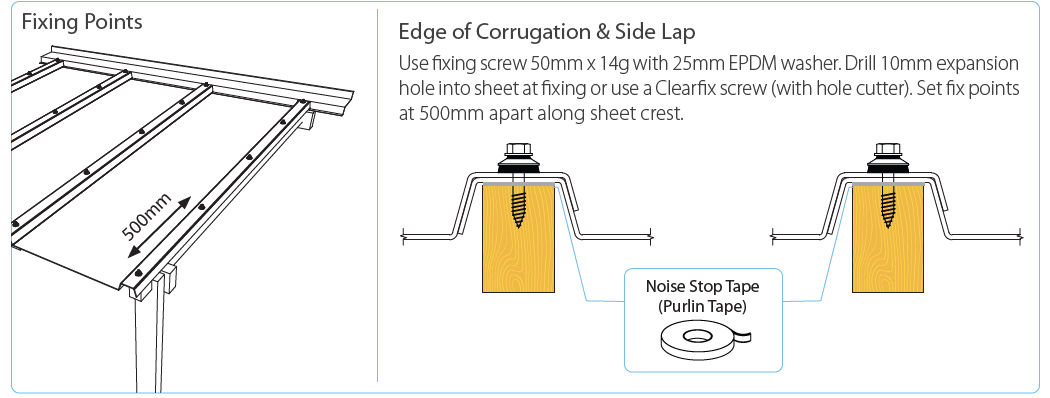

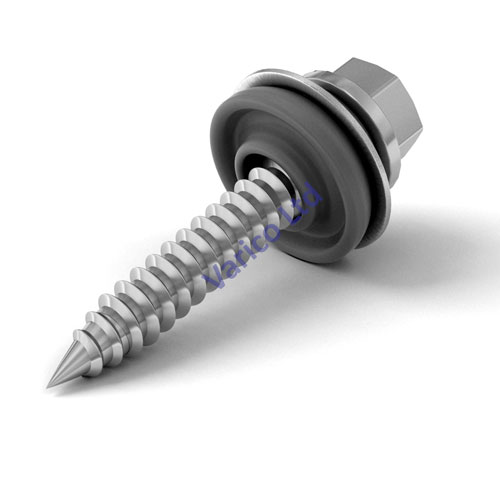

Rafters should be set out at 600mm centres. EZ GLAZE™ Foam anti noise tape should be applied to the top of the rafter. Sheets are then installed over the tape and overlapped. EZ GLAZE™ Timber Fixing Screws should be used at minimum 500m centres along the crest of the joint. A 10mm expansion hole should be drilled through the sheet before fixing.

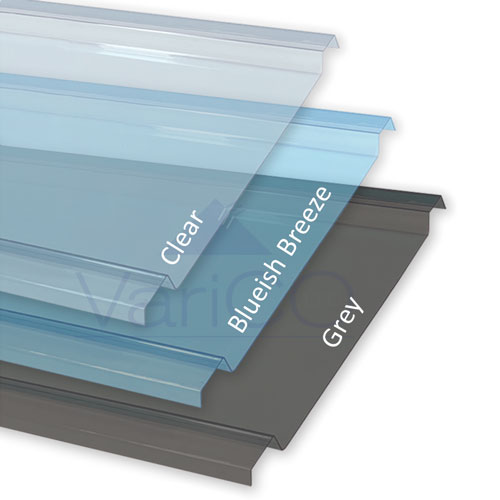

Colours: Clear / Grey / Blueish Breeze
Cover Width: 600mm
Light Transmission: Clear 90% / Grey 20% / Blueish Breeze 70%
Snow Loading: 400kg/m²
Flammability: European Standard EN13501 - Bs1, d0
