New Easy-Fit Polycarbonate Roofing Panel 16mm Thick
Varico Ltd are pleased to become an authorised distributor of the new Marlon Clickloc Easy-fit Polycarbonate roofing panel.
The Clickloc system is a 16mm thick polycarbonate roofing sheet which provides the ideal DIY fitting solution for car ports, canopies, verandas and pergolas. The system requires no glazing bars as the easy-fit panels simply click together to provide an instant roof. Simply cut the panels to your required length, screw into place using the clickloc channel washer, click and lock together and repeat until finished! It really is that easy!

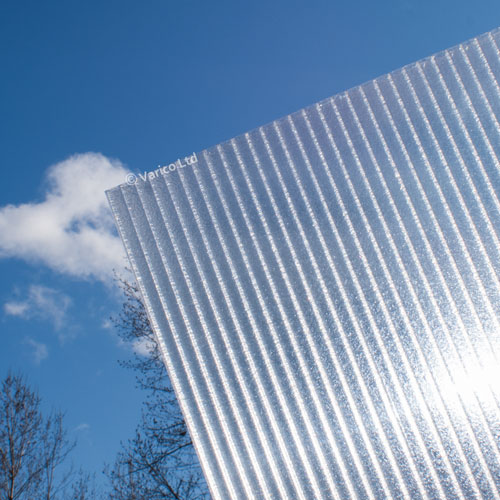

Panels are manufactured from impact resistant, lightweight polycarbonate in frosted clear and frosted opal finishes. Panels are lightweight, durable, hard wearing and supplied with a UV protection layer to the top surface to keep sheets in tip top condition for many years.
Key Benefits:
- Easy To Handle / Fit
- Lightweight
- Speedy Assembly Time
- Very Strong
- Impact Resistant
- UV Protected
- Long Lasting Finish
Typical Applications:
- Car Ports
- Swimming Pool Enclosures
- Canopies
- Lean To Roofs
- Veranda Canopy
- Patio Cover
Properties:
Sheet Thickness / Type: 16mm 5 Wall X-Structure
Panel Width: 528mm
Cover Width: 500mm
U-Value: 2.0W/m²K
UV Protection: Yes (one side only)
Colour: Frosted Clear
Light Transmission Frosted Clear: 66%
Spanning:
1000N/m² Load: Purlin Centres of 800mm
750N/m² Load: Purlin Centres of 1000mm
500N/m² Load: Purlin Centres of 1200mm
Minimum Roof Pitch (Slope): 5°
Warranty:
Ten year limited manufacturers warrnaty against loss of light transmission, yellowing and weather impact.

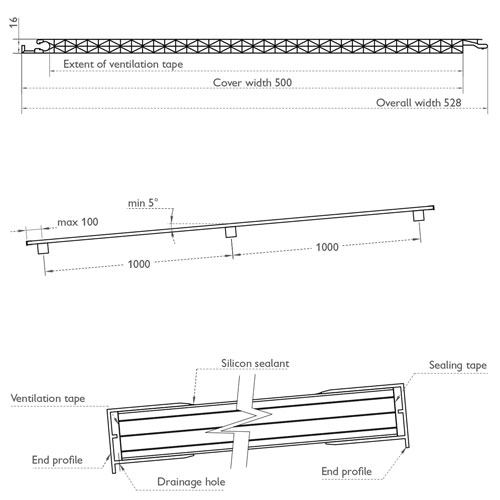

Sectional Drawings:
